THÔNG SỐ KĨ THUẬT

SINAMICS S150 Converter cabinet unit

- AC/AC with CIM+CU320-2 380-480V 3AC, 50/60 Hz

- Type rating: 200kW @ 480V

- Pulsed infeed with energy recovery

- Version A, incl. EMC filter 2nd environment, Category C3

CÁC OPTION CÓ THỂ ĐẶT KÈM:

Available options	Order code
Input side
Use in the first environment according to EN 618003, Category C2 (TN-TT line supplies with grounded neutral point)	L00
Infeed module one level lower	L04
Surge suppression	L21
Main switch incl. fuses or circuit breakers	L26
Line filter monitoring	L40
Output side
dv/dt filter plus Voltage Peak Limiter	L07
Motor reactor	L08
dv/dt filter plus Voltage Peak Limiter	L10
Sine-wave filter (only for the voltage range 380 to 480 V, up to 200 kW)	L15
Motor protection and safety functions
EMERGENCY OFF pushbutton installed in the cabinet door	L45
Thermistor motor protection (alarm)	L83
Thermistor motor protection (trip)	L84
Insulation monitoring	L87
Degree of protection increase
Degree of protection IP21	M21
Degree of protection IP23	M23
Degree of protection IP43	M43
Degree of protection IP54	M54
Mechanical options
Base 100 mm high, RAL 7022	M06
Line connection from above	M13
Motor connection from above	M78
Safety Integrated
Safety license Extended Functions for 1 axis	K01
Second SMC30 Sensor Module Cabinet-Mounted	K52
Terminal module for controlling the Safe Torque Off and Safe Stop 1 safety functions	K82
TM54F Terminal Module	K87
Safe Brake Adapter SBA, 230 V AC	K88
Other options
CBC10 Communication Board	G20
CBE20 Communication Board	G33
TM150 temperature sensor evaluation unit	G51

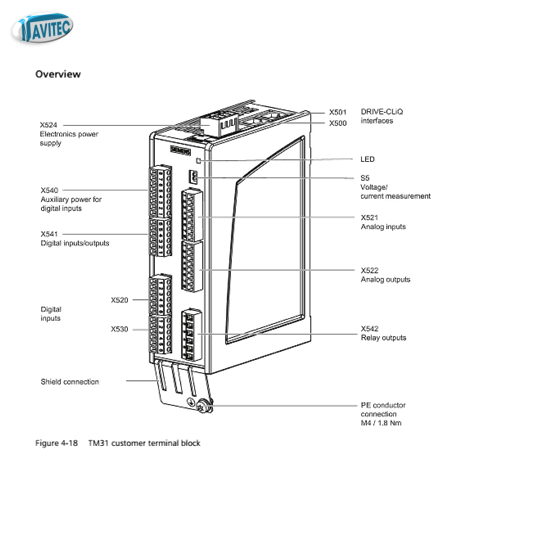

TM31 Terminal Module	G60
TB30 Terminal Board	G62
SMC10 Sensor Module Cabinet-Mounted	K46
SMC20 Sensor Module Cabinet-Mounted	K48
SMC30 Sensor Module Cabinet-Mounted	K50
VSM10 Voltage Sensing Module	K51
CU320-2 PN Control Unit	K95
25/125 kW braking unit for line voltages of 380 ...480 V (110 ... 132 kW) and 660 ... 690 V (75 . 132 kW)	L61
50/250 kW braking unit for line voltages of 380 ... 480 V (160.800 kW) and 660 ... 690 V (160 ... 1200 kW)	L62
25/125 kW braking unit for line voltages of 500.600 V (110 ... 132 kW)	L64
50/250 kW braking unit for line voltages of 500.600 V (160 . 1200 kW)	L65
