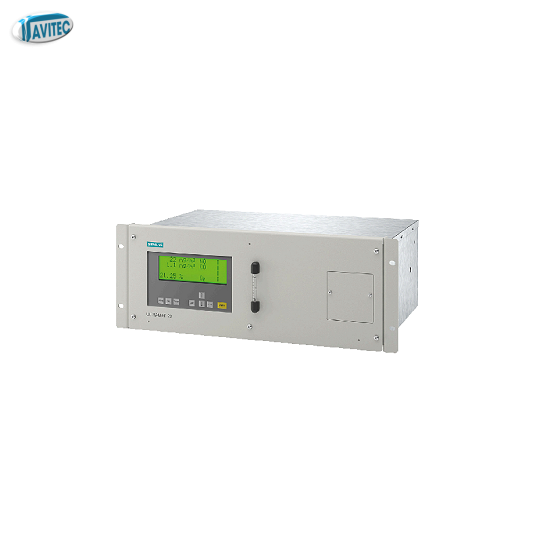

Bộ phân tích khí Ultramax 23 Siemens

- Gas analyzer ultramat 23 for measurement of 3 infrared Components and oxygen

- 19" plug-in unit for mounting in cabinets

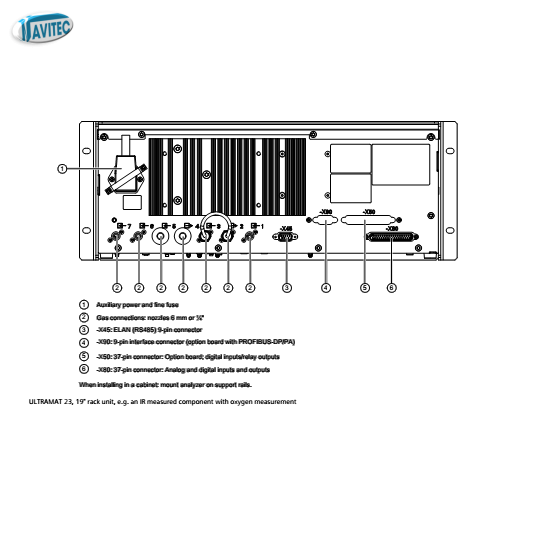

- Gas connections 6 mm tube

- Without internal sample gas pump

- Without separate gas paths (2 channels)

1 + 2 component to be measured CO and NO

-- Min. measuring range for CO 0 to 1000 vpm

-- Max. measuring range for CO 0 to 5000 vpm

-- Min. measuring range for NO 0 to 1000 vpm

-- Max. measuring range for NO 0 to 5000 vpm

3rd component to be measured: SO2

-- Min. measuring range: 0 to 500 vpm

-- Max. measuring range: 0 to 2500 vpm

- Power supply: AC 230 V, 50 Hz

- Additional electronics with 8 binary inputs and 8 binary outputs

- Profibus DP interface

- With paramagnetic Oxygen measuring cell

- Selection the conversion mg/m3 into ppm at 293K or 273K
