Thiết bị đo mức dạng sóng Radar.

Khoảng đo 0...100 mét.

Phù hợp đo mức chất rắn dạng bột.

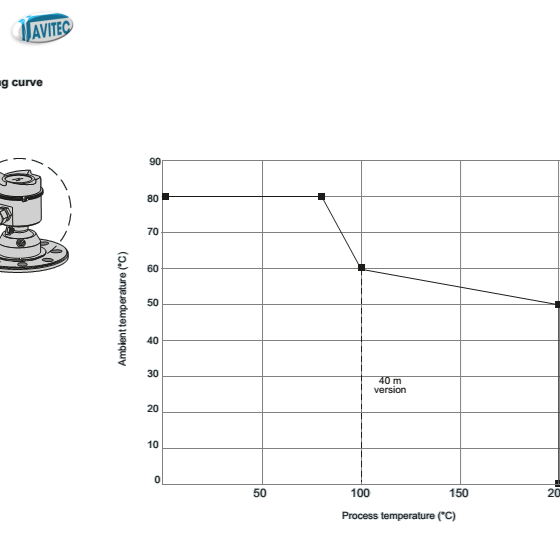

-Measurement and process temperature range: 100m (131 ft) max range, -40 C degrees to +100 C degrees status.

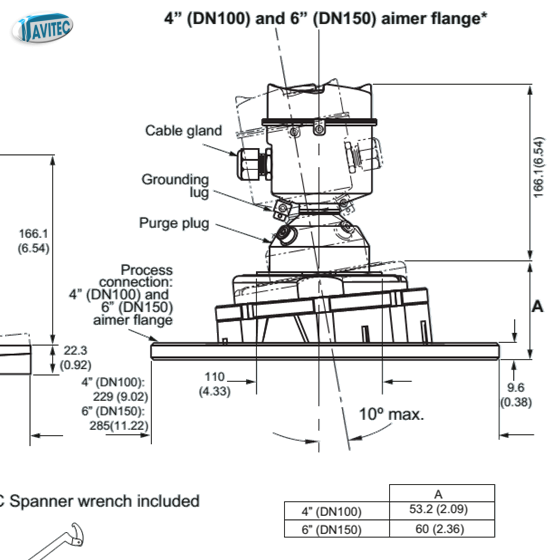

 -Process connection: Universal flat-faced flange fits ANSI/DIN/JIS flanges: 6" / 150 mm, painted aluminum, with integral aimer

 -Enclosure (with cable inlet): Stainless Steel, 1 X 1/2" NPT status

 -Pressure Rating: 0.5 bar g (7.5 psi g) maximum status

 -Output/communication: 4 to 20 mA, HART status

 -Approvals: Ordinary Locations/General Purpose (Non-Ex), FM, cCSAus, IC, FCC, CE, UKCA, RED, RCM status

 -Local display interface: With LDI (local display interface)

Tùy chọn cơ bản -Z :

A50 : Electrical Connections: Plug M12 with mating connector

A55 : Electrical Connections: Plug 7/8 inch with mating connector

C11 : Manufacturer's Test Certificate: M to DIN 55350, Part 18 and to ISO 9000

C12 : Material Inspection certificate 3.1 of EN 10204

N07 : NAMUR NE43 compliant, device preset to failsafe <3.6mA

Y15 :Stainless steel tag (69 x 50 mm (2.71 x 1.97")) Measuring-point number/ identification (max. 27 characters) specify in plain text.

Y99 :Custom design: Specify reference number when ordering.
