Thiết bị đo mức Điện dung CLS 200

Thiết bị đo mức Điện dung CSL 200.

Pointek CLS200 (digital version) is a versatile inverse frequency shift capacitance level and material detection switch with optional rod/cable choices and configurable output. CLS200 is ideal for detection of liquids, solids, slurries, foam, and interfaces and has the ability to tune out buildup on the probe. The digital version includes PROFIBUS PA, an LCD display, and advanced diagnostic features.

Có 4 phiên bản

1. Rod version :

     -Khoảng cách đo tối đa : 5 500 mm.

     -Chuẩn kết nối : lựa chọn 1 trong các cách sau

         ¾" NPT [(Taper), ANSI/ASME B1.20.1]

         1" NPT [(Taper), ANSI/ASME B1.20.1]

         1¼" NPT [(Taper), ANSI/ASME B1.20.1]

         1½" NPT [(Taper), ANSI/ASME B1.20.1]

         R ¾" [(BSPT), EN 10226/PT (JIS-T), JIS B 0203]

         R 1" [(BSPT), EN 10226/PT (JIS-T), JIS B 0203]

         R 1½" [(BSPT), EN 10226/PT (JIS-T), JIS B 0203]

         G ¾" [(BSPP), EN ISO 228-1/PF (JIS-P), JIS B 0202]

         G 1" [(BSPP), EN ISO 228-1/PF (JIS-P), JIS B 0202]

         G 1½" [(BSPP), EN ISO 228-1/PF (JIS-P),

     -Extension material : 316L stainless steel optional PFA coated

     -Sensor wetted parts PPS (optional PVDF).

     -O-ring seal material FKM (optional FFKM)

     -Thermal isolator3) Optional

     -Extension User selected length

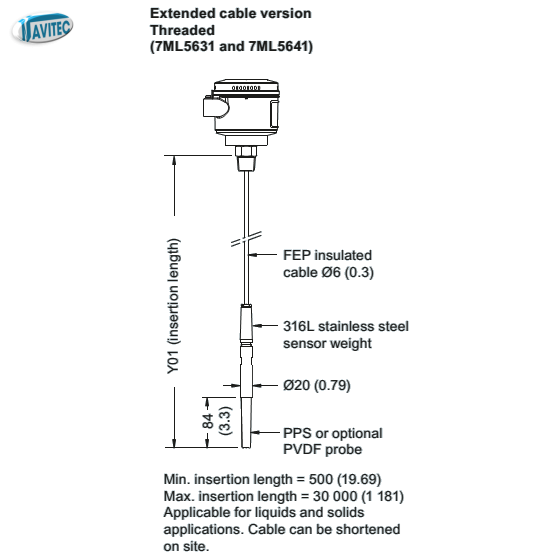

2. Cable version :

     -Khoảng cách đo tối đa :

         30 000 mm (1 181.1 inch) liquids and slurries

         5 000 mm (196.85 inch) solids (under loads)

     -Chuẩn kết nối : lựa chọn 1 trong các cách sau

         R ¾", ", 1¼", 1½" [(BSPT), EN 10226/PT (JIS-T), JIS B 0203]

         ¾", 1", 1¼", 1½" NPT [(Taper), ANSI/ASME B1.20.1]

         G ¾", 1", 1½" [(BSPP), EN ISO 228-1/PF (JIS-P), JIS B 0202]

         316L stainless steel ASME/EN flange

     -Extension material : Fluoroethylene propylene (FEP) cable with stainless steel core

     -Sensor wetted parts PPS (optional PVDF).

     -O-ring seal material FKM (optional FFKM)

     -Thermal isolator3) Optional

     -Extension Cable extension

3. Sanitary version :

     -Khoảng cách đo tối đa : 5 500 mm.

     -Chuẩn kết nối : lựa chọn 1 trong các cách sau

         1" sanitary fitting clamp

         1½" sanitary fitting clamp

         2" sanitary fitting clamp

         2½" sanitary fitting clamp

         3" sanitary fitting clamp

     -Extension material : 316L stainless steel

     -Sensor wetted parts PPS (optional PVDF).

      -O-ring seal material FKM (optional FFKM)

     -Thermal isolator3) Optional

     -Extension User selected length

4. Sliding Coupling version :

     -Khoảng cách đo tối đa : 5 500 mm

     -Chuẩn kết nối : lựa chọn 1 trong các cách sau

         1" sanitary fitting clamp

         1½" sanitary fitting clamp

         2" sanitary fitting clamp

         2½" sanitary fitting clamp

         3" sanitary fitting clamp

     -Extension material : 316L stainless steel

     -Sensor wetted parts PPS (optional PVDF).

     -O-ring seal material FKM (optional FFKM)

     -Thermal isolator3) Optional

     -Extension Cable extension

7ML5641-0AA00-0BA0

Pointek CLS200 RF Capacitance point level switch, digital, cable design. Detects level and interface in liquids, solids, slurries, and foam.

Cable extension options to 30 m (98.43 ft), adaptable sensitivity, with the ability to tune out build-up on probe.

With display and digital communications.

Process Connection: Threaded, 316L (1.4404) stainless steel: 3/4" NPT (Taper), ANSI/ASME B1.20.1

Probe length: (length from flange face) (threaded lengths include process thread) Extended cable, 3000 mm (118.11"), length can be shortened by customer

Thermal Isolator: Without thermal isolator

Wetted Seals: FKM and PTFE

Probe Material: FEP jacketed cable with PPS probe body

Approvals: Non-Sparking CE, RCM, ATEX II 3 G Ex nA II T6...T4, ATEX II 2 D IP6X T100 C

Enclosure and Lid: Aluminum epoxy coated 2 x 1/2" NPT via adapter - cable inlet, IP65
