Thiết bị đo mức dạng xoay LPS 200

7ML5728-1AA21-1AA0

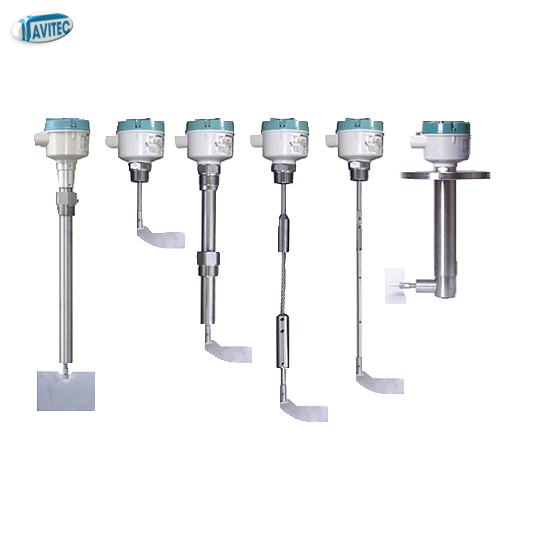

SITRANS LPS200 Rotary paddle point level switch, angled extension design

Process temperature : Up to +80 C (+176 F) status

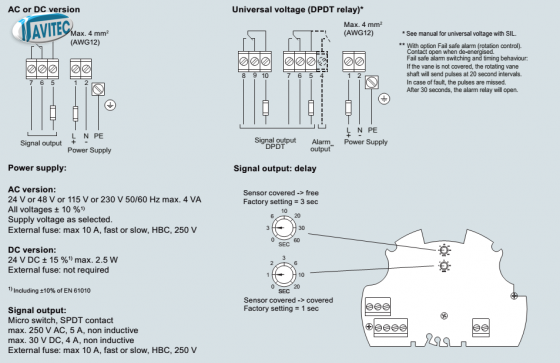

Power supply: 230 V AC, 1 rev/min. status

Process connection: DN100 PN 6, EN1092-1, flat faced (1.4541/321) status

Process pressure: Up to 5 bar (72.5 psi) status

Process connection material: Stainless steel 303/321 (1.4305/1.4541) status

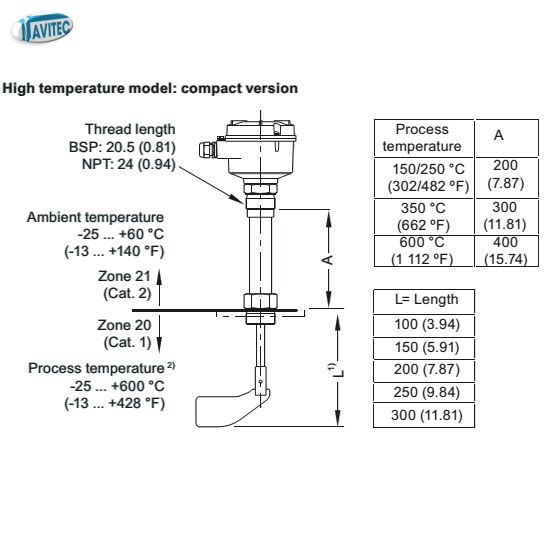

Extension length: 125 mm (4.92 inch) status

Measuring vane: Rectangular vane, 50 x 98 mm (1.97 x 3.86 inch) status

Approvals: CSA/FM Dust Ignition Proof, RCM
